To install IG.Model.Processor you can follow the following steps.

Tested on clean system: Windows Server 2019/2022 and Windows 11

• Download or obtain the zip package containing all the necessary DLL files named IG.Model.Processor-RT_1.3.zip.
• Download or obtain IG.Model.Processor_1.4.0.100.zip.
  This is the program .exe itself.
• Extract both zip packages into a single folder.
• Run the executable (IG.Model.Processor.exe).
• Even without commands or a batch file, you should get the {Cube.obj} geometry. This means the installation was completed successfully.

Tested on: Linux Ubuntu 24.04

• Obtain zip package named Model.Processor_linux_1.4.0.100.zip.
• Extract the package.
• Go inside the extracted folder named Model.Processor_linux_1.4.0.100. You will see a script named run_install.sh.
• Make the script executable by running:

chmod +x run_install.sh

• Run the script to install all required runtimes and prepare system.

./run_install.sh

• The successful installation should print the –help command of IG.Model.Processor in the terminal.

• After installation, you can run IG.Model.Processor with your JSON files. For example:

./IG_Model_Processor --model flat --file flatPanel-104-triangle.json --output OBJ

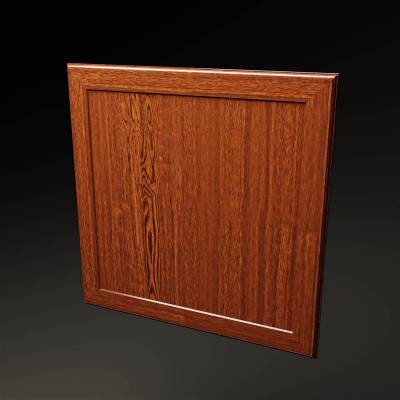

• *Simple furniture door generated using IG.Modell.Processor.exe with –flatpanel command**
