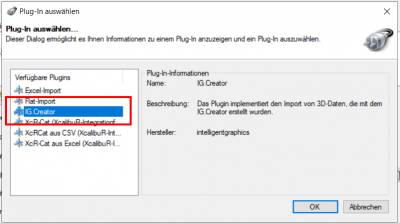

To insert IG 3D data into an XcalibuR catalog during catalog import, the IG.Creator plugin in XcalibuR Management Studio is required. This is unlocked via a license from Diomex.

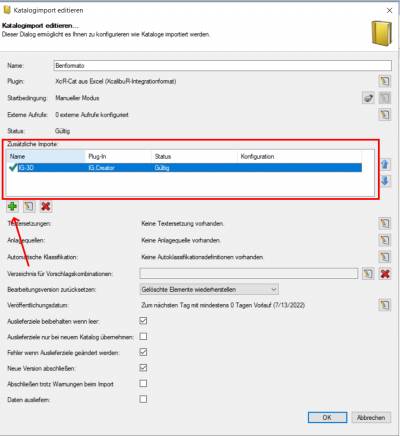

If the plugin is available, it must be added to the list of “Zusätzliche Importe” in the catalog import settings.

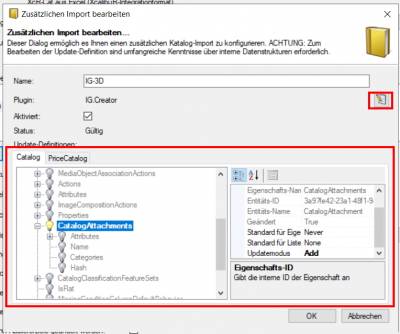

After that, the plugin can be set up in the overview with the help of a double click.

The following settings must be set:

• CatalogAttachements, Update Mode “Add”.

Last but not least the IG.Creator properties have to be edited with the button behind the plugin name “IG.Creator” in the plugin properties dialog.

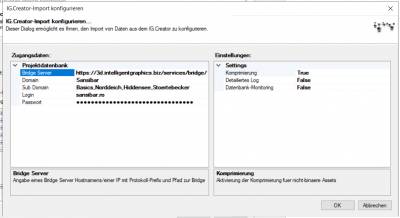

The following must be specified:

• Bridge Server
• Domain
• Sub Domain
• Login
• Password

This information must be requested from intelligentgraphics.

If a catalog references multiple IG.Creator workspaces, they must be listed under “Sub Domain” separated by a “,”. For many workspaces the sub domain “Basics” is mandatory.
